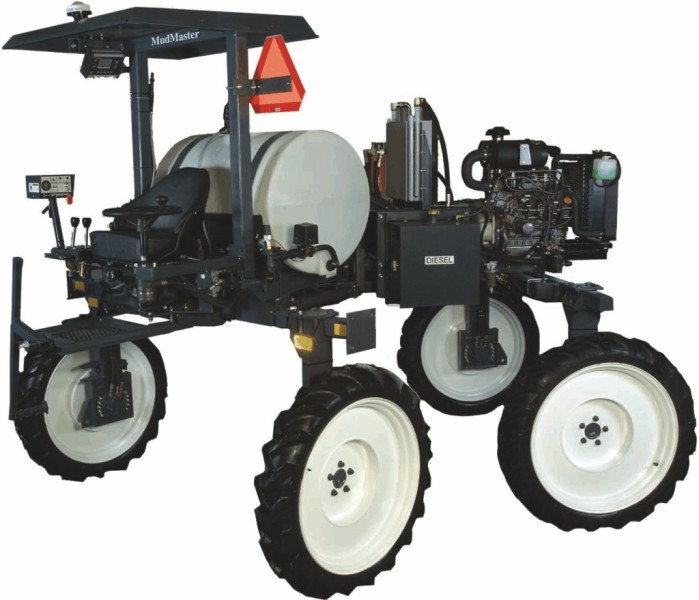

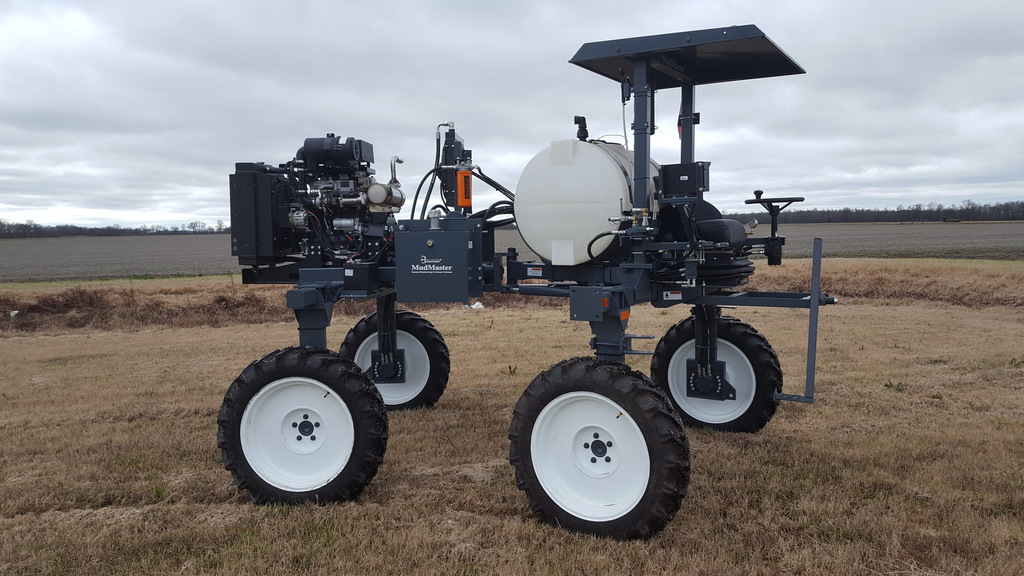

4WD Multi-Purpose Sprayer:



Broadcast spraying

Spot spraying

Levee spraying

Rope wicking

Spill pulling

Levee cutting

Water draining / ditching

Red rice rogueing

Crop scouting

Small plot and research spraying (click to learn more about customization options)



Features

  • Diesel engine - Yanmar, 47 hp, 4-cylinder, liquid cooled
  • Hydrostatic transmission
  • Full-time 4WD
  • Dual hydrostat pumps (independent front/rear)
  • Hydraulic oil cooler

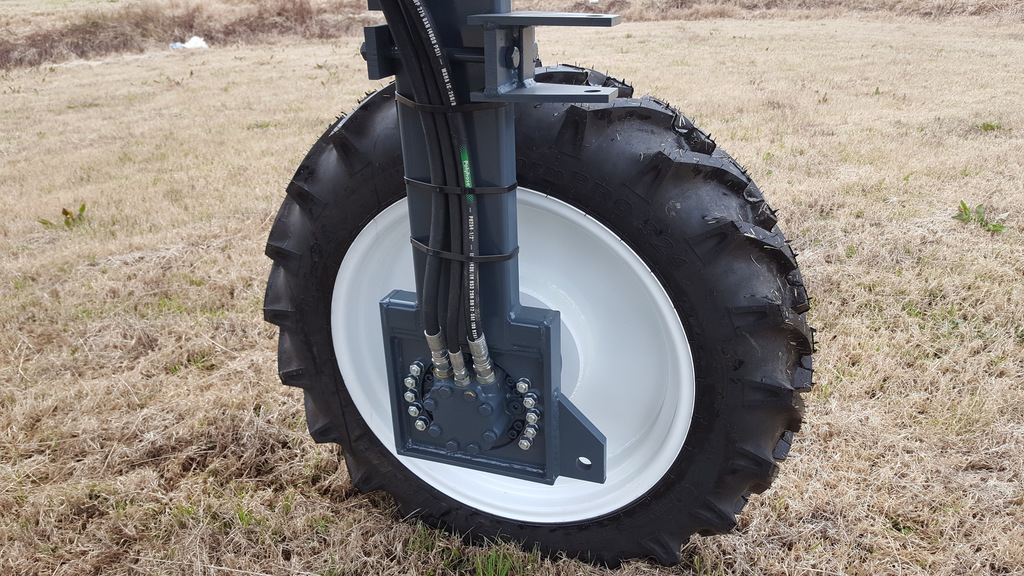

  • Narrow / tall tires (8.3x24, 8-ply)
  • Heavy duty frame
  • Articulated steering

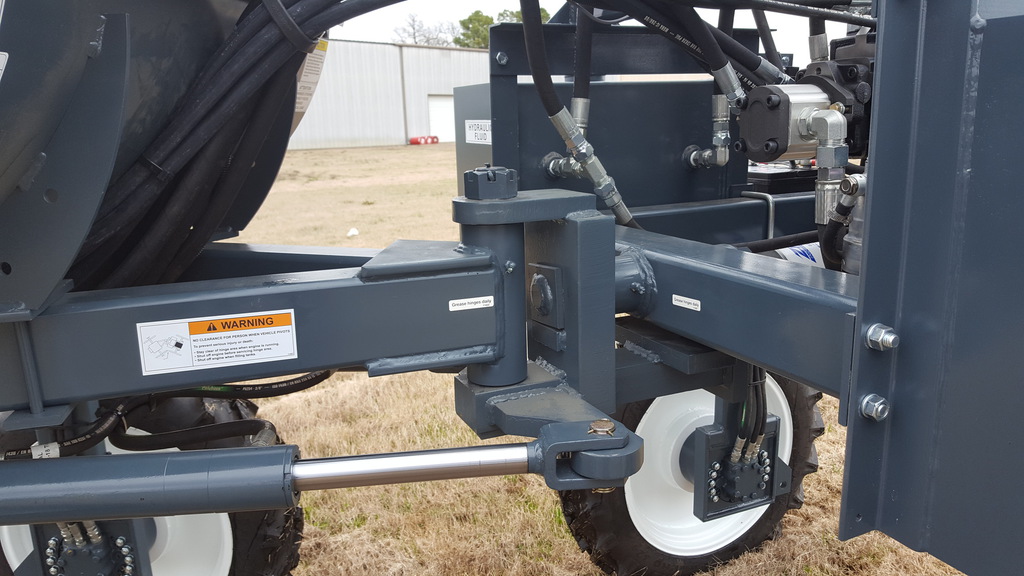

  • Oscillating center hinge with bronze bushings

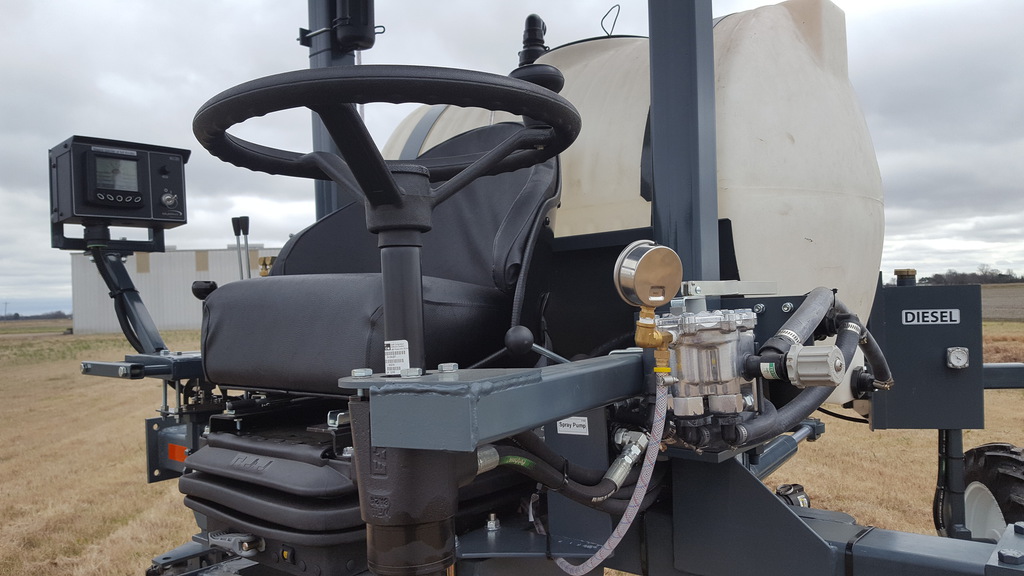

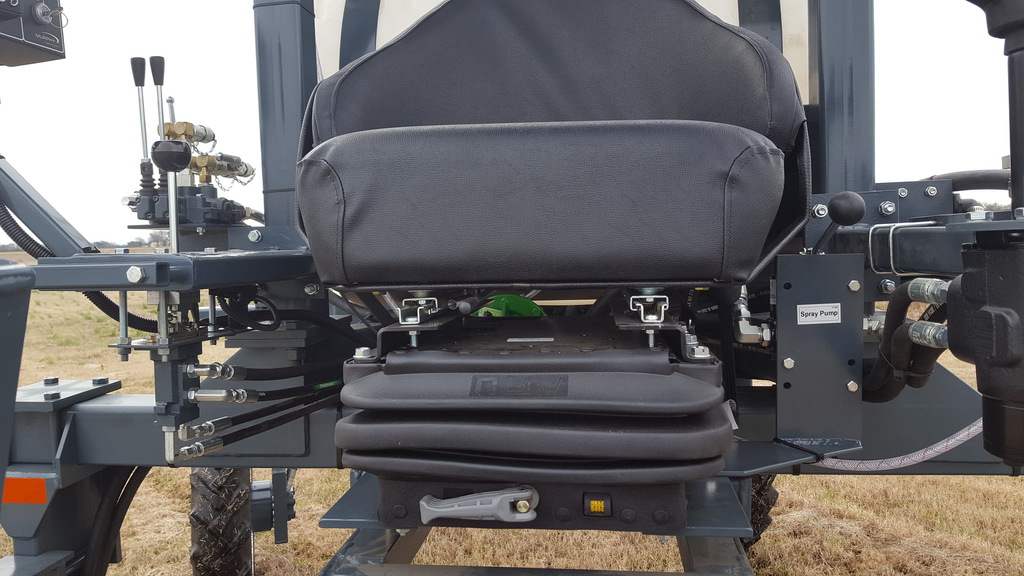

  • Suspension operator seat
  • Vibration dampening engine/pump mounts

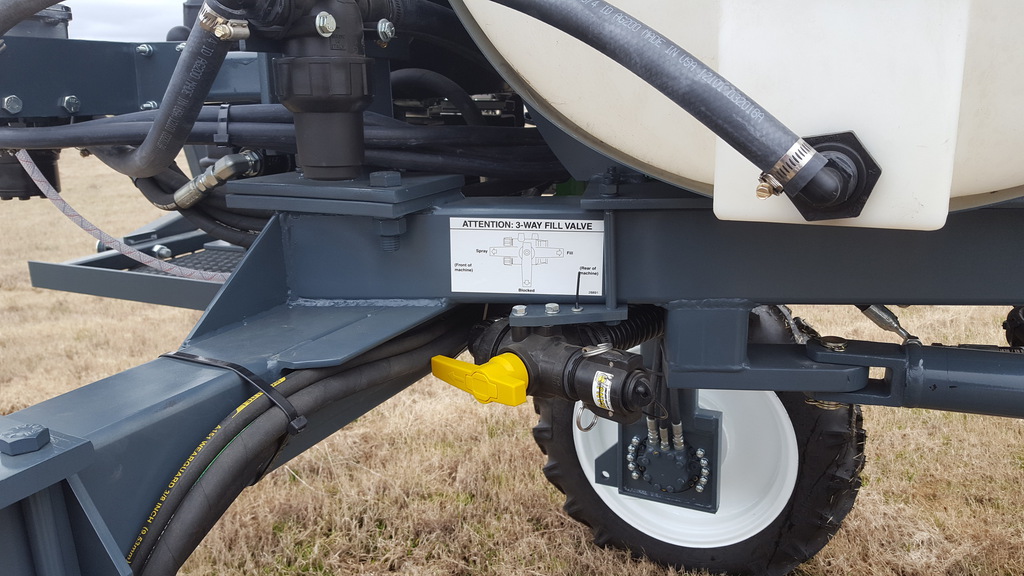

  • Quick-fill coupler for filling chemical tank from optional transport/nurse trailer

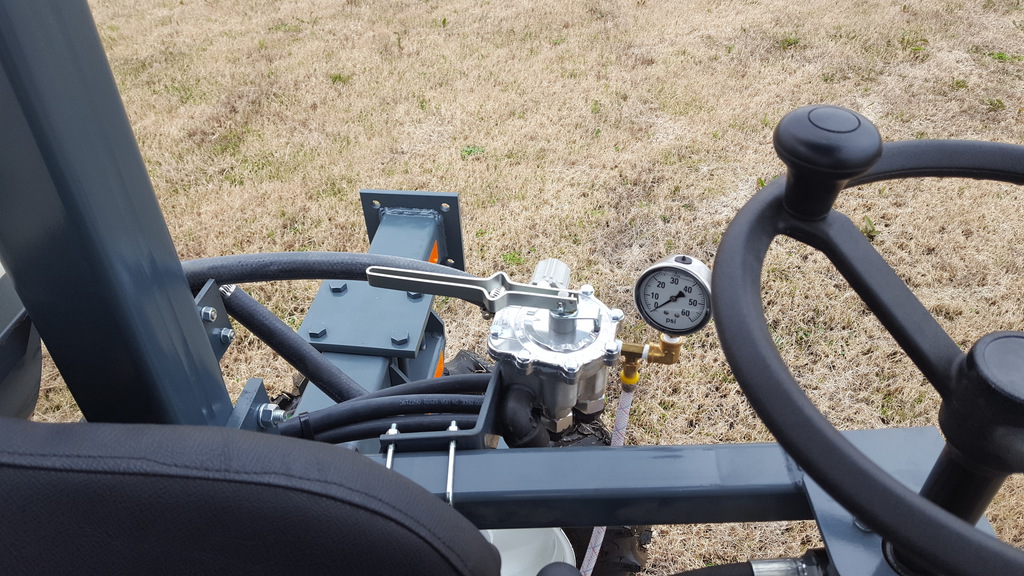

  • 3-section spray manifold allows any combination of left/center/right boom sections
  • Hand spray gun

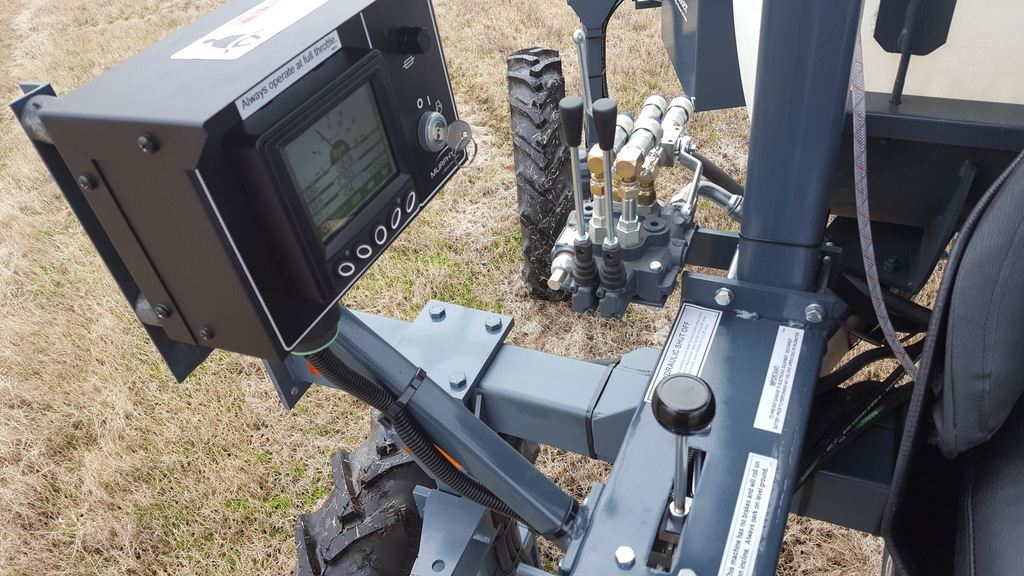

  • Dual hydraulic remotes can operate 2 hydraulic circuits - raise/lower, fold/unfold attachments
  • Quick-lock clevis system secures MudMaster on optional transport/nurse trailer



Specifications (without attachments)

  • Weight: 3,400 lbs. dry
  • Ground clearance: 46 inches
  • Wheel spacing: 73-98 inches, adjustable
  • Height: 106 inches
  • Width: 93 inches
  • Length: 152 inches
  • Wheel base: 91 inches
  • Capacity: 110-gallons
  • Ground speed: 0-9 mph, forward and reverse
  • Chemical pump: hydraulic centrifugal (45 gpm @ 35 psi)
  • Turning radius: 8.5 feet

Why should you own a MudMaster?

Click here to find out.

Browse related topics:

MudMaster Optional Attachments



MudMaster Transport/Nurse Trailer

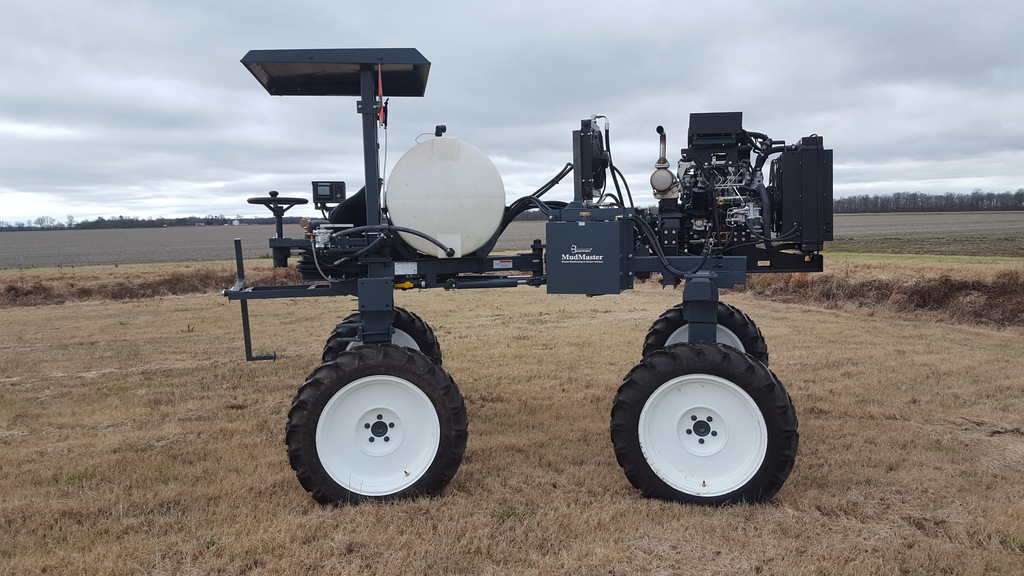

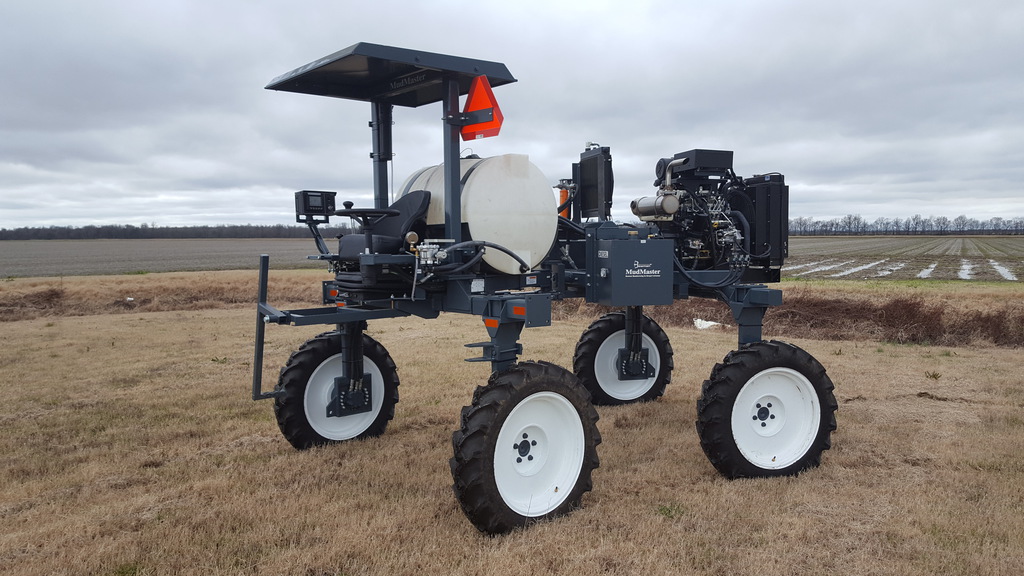

Photo Gallery - Click image to view slideshow
